Keyframe Animation

The new Cables timeline offers a powerful, modular environment for keyframe animation, procedural motion, and precise control over object parameters. Below is a guide to its primary features and typical workflow.

1. Animation Types in Cables

Procedural Animation Trigger motion using timer-based or mathematical operations (e.g., MapRange), ideal for continuous effects or automated behaviors.
Keyframe Animation Place and edit specific parameter values at chosen points in time for total control over transitions and timing.

2. Getting Started: Animating a Circle

Step-by-Step:

Create a Circle: Insert a circle object and apply a Transform operator.
Open Parameter Animation: In the Inspector Panel, locate the parameter (e.g., posY).

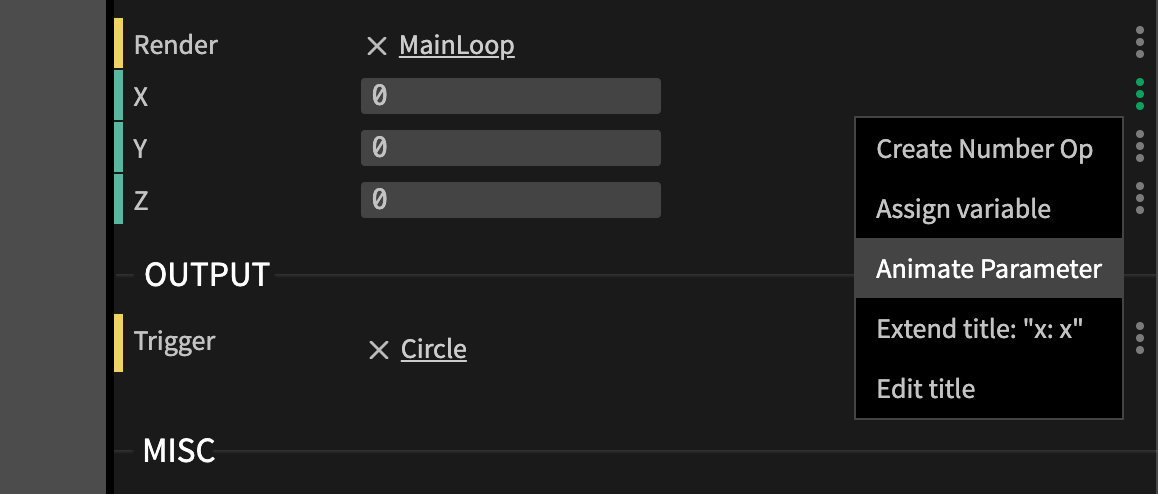

Enable Keyframe Animation: Click the three dots next to the parameter and choose “Animate Parameter.”
Access Timeline: A timeline icon appears; click it to open the timeline view.
Add Keyframes:
- Move the playhead to the desired time.

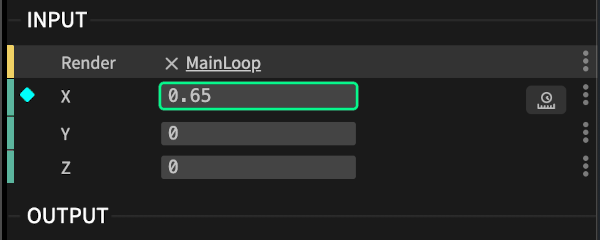

- Adjust the parameter’s value; a new keyframe is added.
Repeat for other parameters (e.g., posX) to animate multiple tracks.

3. Timeline Interface Breakdown

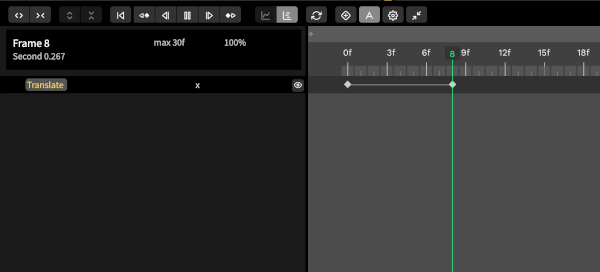

Controls (Top Bar)

Rewind, fast-forward, and jump between keyframes.
Use keyboard shortcuts “J” and “K” for quick navigation.
Toggle between time (seconds) and frames; default snapping is set to 30 FPS.

Track Area (Left)

Shows all animated parameters.
Mute animations with the mute icon for selective playback.

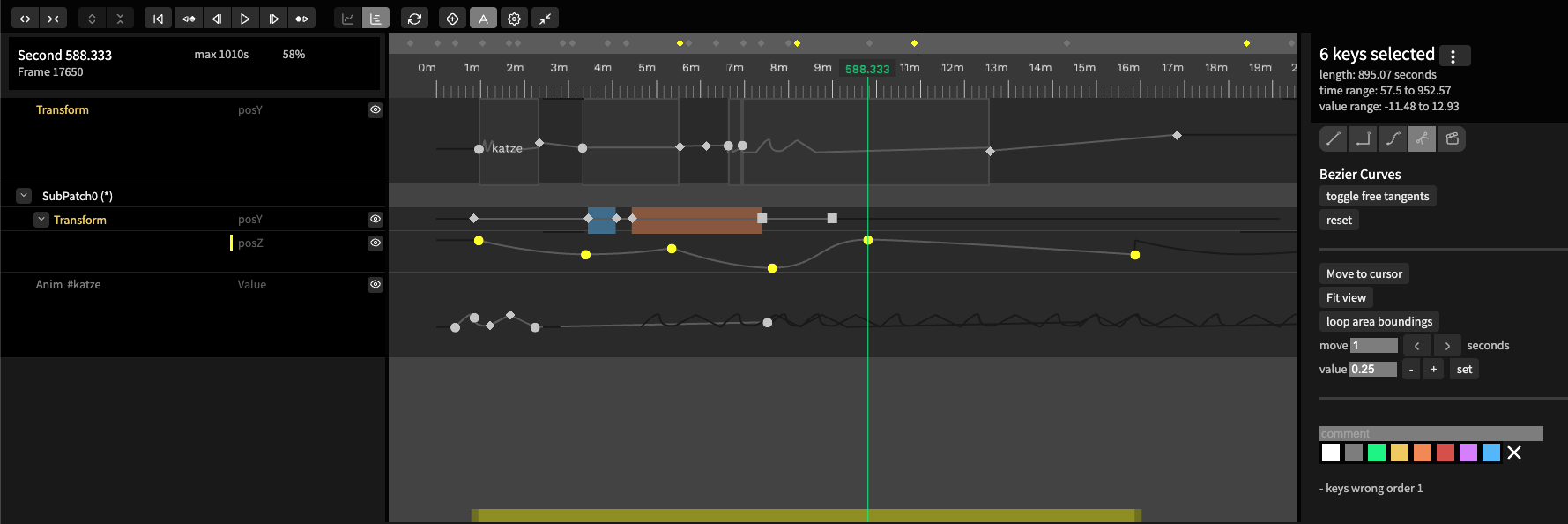

Timeline Overview (Middle)

Zoom and pan to navigate the timeline using the mouse wheel and drag.
Green playhead shows current time.
Drag keyframes to move or stretch for timing adjustments.
Group move multiple selected keys with the yellow highlight area.

Detail Panel (Right)

Displays track statistics: key count, duration, value range.
Loop mode, interpolation, and buttons for fit-to-view or spreadsheet key editing.

4. Key Interactions & Editing

Insert Key: Double-click a track or use the “add key” icon.
Disable Auto-Key: Click the “A” (auto) icon to try out values without saving keys.
Copy & Paste: Use Cmd+C to copy and Cmd+V to paste keys.
Group Edit: Select multiple keys to move or stretch them together.

Tips:

Add comments and color to keys for clear timeline annotations.
Use mute for isolating tracks during animation preview.

5. Viewing & Adjusting Animation

List (Track) View: Displays discrete key markers.
Graph View: Visualizes value curves over time.
- The Y-axis represents values; the X-axis is time.
- Adjust curve tangents in Bezier mode for smooth motion transitions.

6. Interpolation Modes

Interpolation Type	Description
Linear	Straight lines, constant rate between keyframes
Absolute	Instant jumps, no in-between values
Predefined Curves	Built-in ease in/out options for natural motion
Bezier	Custom tangents for detailed curve control
Clip	References a reusable animation section (Clip)

Change mode with the icons above the timeline. Use Bezier for maximum flexibility; use Absolute for triggers and boolean states.

7. Looping and Focused Playback

Set a Loop: Use the loop icon to define a playback area (shows as a red region).
Adjust Loop: Drag loop area edges to refine.
Remove Loop: Click the X icon to disable looping.

This feature streamlines editing when synchronizing animation with music or fine-tuning short segments.

8. BPM Synchronization

Add BPM Operator: Shows beat markers on the timeline for easy music syncing.
Adjust BPM: Change the value to fit your project tempo.
Visual Sync Only: Current version is for visual reference; snapping to beats planned for future releases.

9. Independent Animation Ops

Anim Op: Create a stand-alone animation not linked to any parameter.
Anim Get Value: Sample the value at a specific time, enabling procedural motion (e.g., stagger movement for 100 cubes with offsets).

10. Animation Clips and Reuse

Make a Clip: Set a name in the Anim Op’s clip parameter.
Attach to Parameter: In another track, select the clip from the interpolation menu.
Edit Once, Use Everywhere: Changes in the source clip propagate to all using tracks.

You can expand a track to view its curve and easily identify where clips are applied.

11. Advanced Loop Modes

Off: Animation holds the final value after last keyframe.
Repeat: Animation restarts after last keyframe, forming a loop.
Mirror: Animation alternates direction for seamless ping-pong effects.
Offset: Each loop offsets by the last value, creating accumulating patterns.

Choose loop mode per animation in the detail panel for advanced motion control.
