MapRange Op

MapRange

Maps a value from one range into another.


changes a number's relative value by mapping within one range to the equivalent position in another range.
For example, given the range of 0 to 100, 50 would be halfway between. so if it were mapped to a range of 0 to 50, it would be 25 (because 25 is exactly half that range).


Edit Documentation

Full Name
  • Ops.Math.MapRange
Visibility
  • Core Op - Official cables op
AuthorTest Patches




Example Patch maprange

Open In Editor

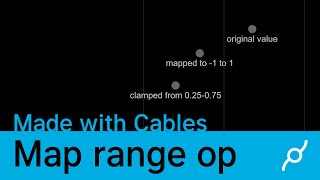

Youtube Video Tutorial

INPUT PORTS


value (Number)

The value you want to map

Input Range

old min (Number)

The minimum of the old range

old max (Number)

The maximum of the old range

Output Range

new min (Number)

The minimum of the new range

new max (Number)

The maximum of the new range

Easing index (Number:integer )
Clamp (Number:boolean )

OUTPUT PORTS


result (Number)

Result of the mapping


Usages of MapRange

  • Examples
  • Public
  • My Patches
  • Ops

Changelog


improvementadjusted default valuesuser avatarpandur - 2024-01-11
featureadded option to turn off clamping, so values can be bigger then the specified min/max input rangeuser avatarpandur - 2024-02-02
